Tuesday, September 30, 2008

installing glass into door

Many times clients, contractors, architects want to know how the glass is installed in the door. For many of the designs seen on the website the art glass is installed up against the tempered insulation glass facing the inside. Here is how we do it.

We start with a door I get from one of several suppliers. I get the door with no glass.

I also get a double pane of tempered insulation glass. This is what provides all the insulation and protection from the outside. This panel is 7/16" thick.

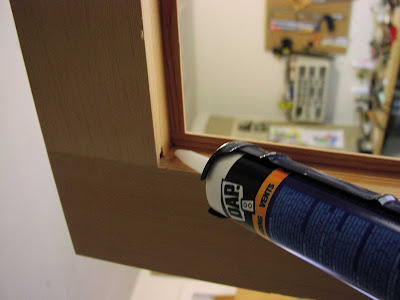

After applying a sealer on the exposed wooden back stop I run a bead of caulk around the edge. This will seal the unit from the outside elements.

I place the double pane of tempered clear glass up against the caulked back stop.

Then we put the art glass up against the tempered unit. This is facing the inside of the door. The art glass is exposed to the inside of the home or building.

The last step is putting the inside stops up against the art glass to keep everything in place.
